CNC Cutting & Routing
Cut sheet work for models: stepped contour terrain, engraved city bases and raised lettering, combined with 3D printed buildings, made in Dhaka.
Many of the models we make are hybrids: the buildings are 3D printed, while the flat parts (terrain layers, base boards, street patterns and lettering) are cut from sheet. These projects show that sheet work in real student and studio models.
For your own parts in plywood, MDF, acrylic or foam board, send a DXF or SVG on the CNC 2D cutting quote page. For the printed parts, use the FDM 3D printing quote.
Projects

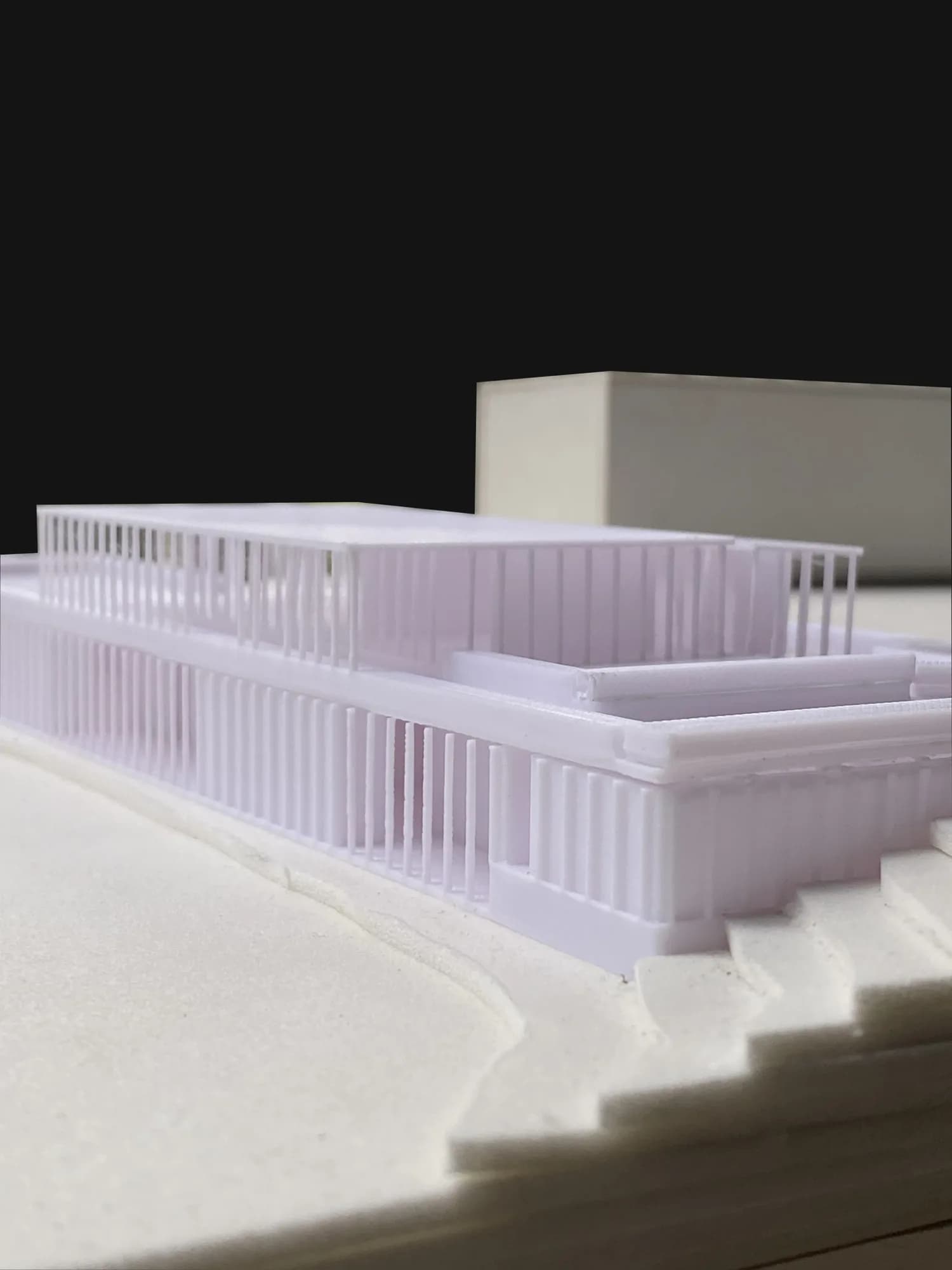

Museum of Modern Literature, Marbach: 1:300 study model with stepped terrain (BUET)
A 1:300 study model of David Chipperfield's Museum of Modern Literature in Marbach: a 3D printed building with sectional cuts, set into a hillside built from stacked, cut contour layers. Model making: Imtiaz Uddin, BUET.
- TypeArchitectural study model (sectional)
- BuildingMuseum of Modern Literature, Marbach (David Chipperfield Architects)
- Scale1:300 (as posted)

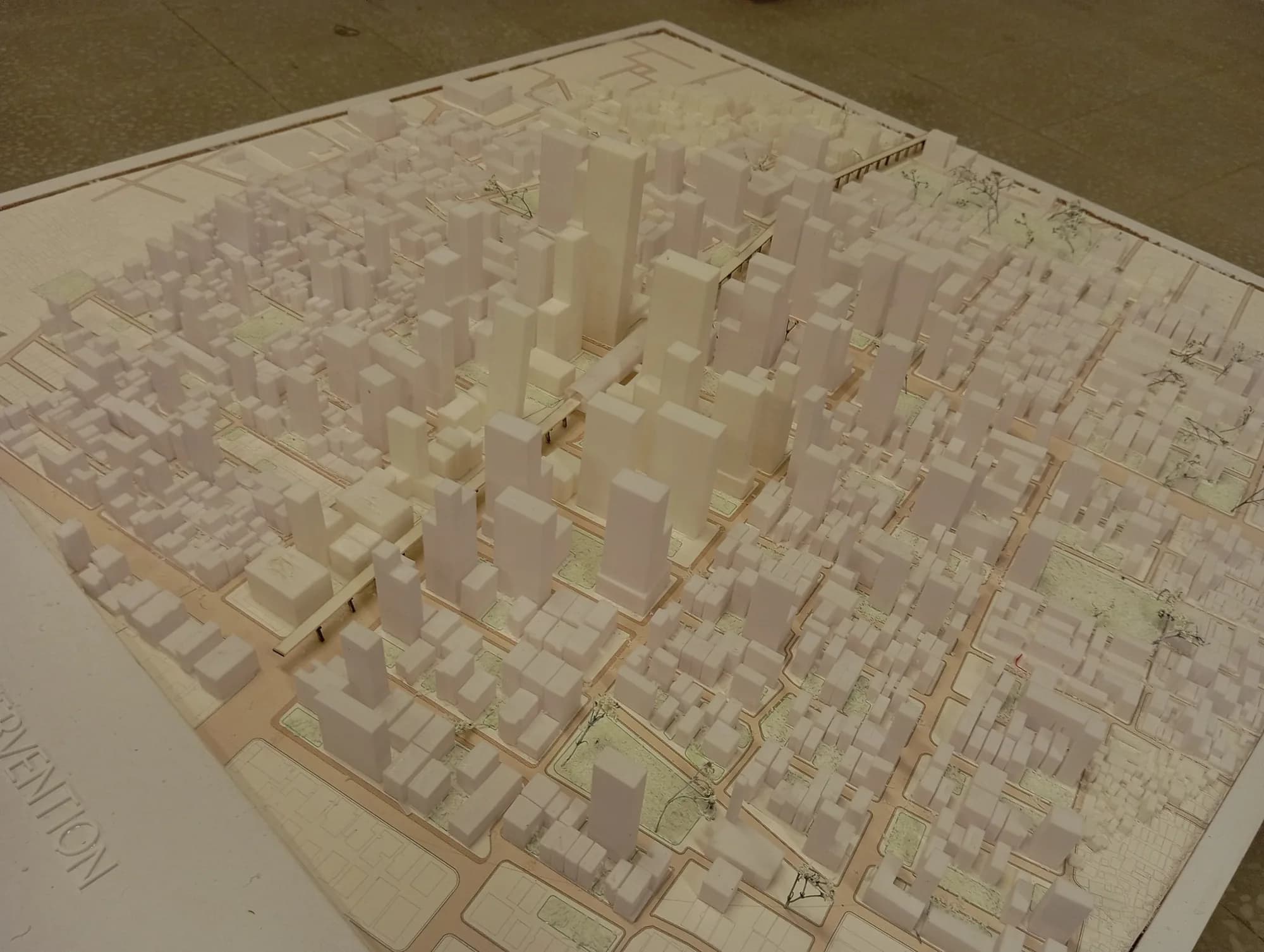

Transit-oriented development model for a Dhaka station area, 1:1200 (BUET)
A 1:1200 urban design model of a Dhaka metro station area: a base with the street network and plots cut and engraved into it, and hundreds of 3D printed building blocks. Model authors: Pushpita Dey, Nahian Tabassum and Md. Mubtasim Fuad (BUET).
- TypeUrban design model
- ProjectTransit-oriented development in a Dhaka station area
- Scale1:1200 (as posted)

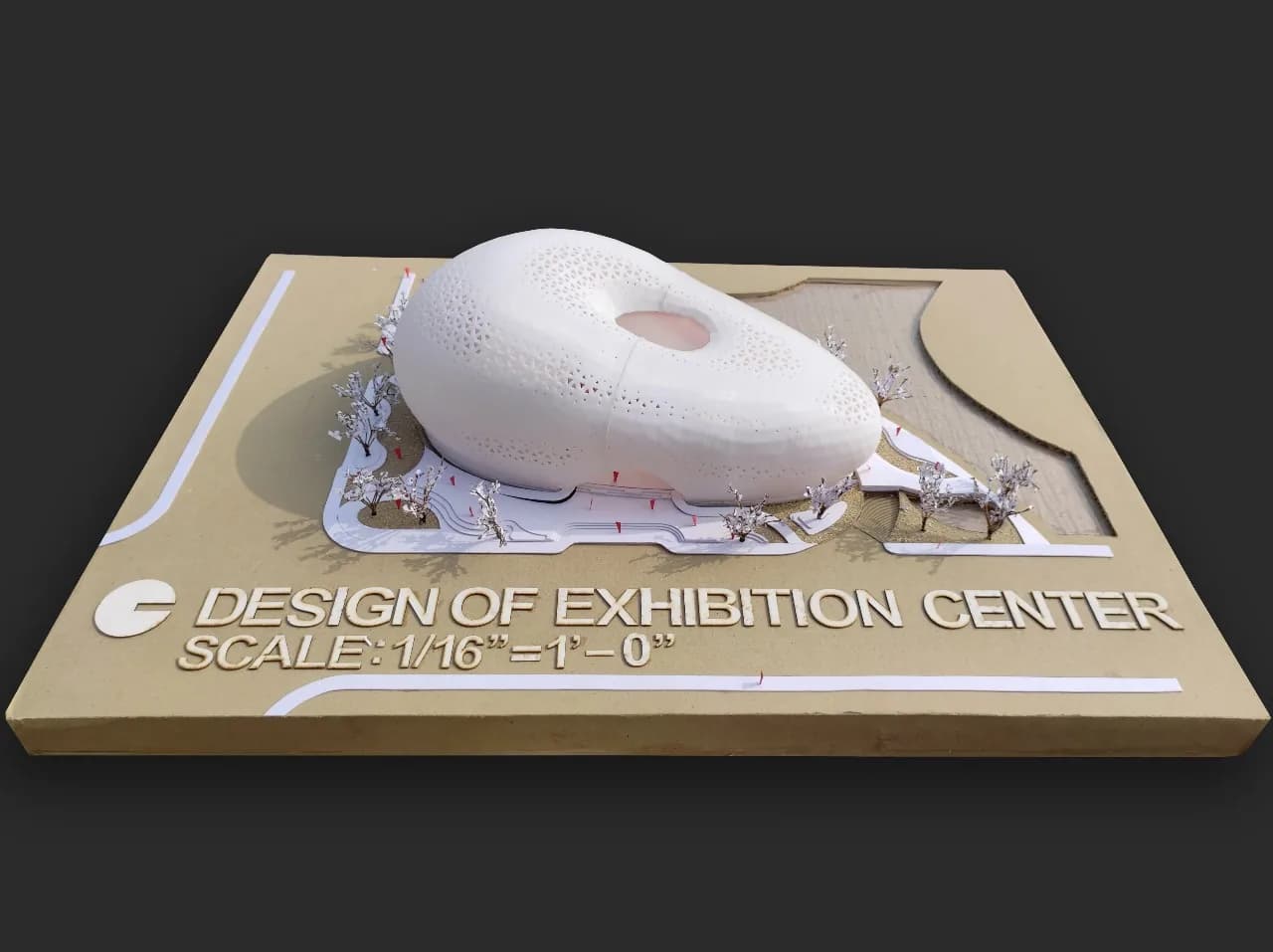

Exhibition centre model for Purbachal, Dhaka, with a cut base and raised lettering
A presentation model of a proposed exhibition centre at Purbachal: a perforated 3D printed shell on a board with cut raised lettering, inlaid white paths and a recessed site edge. Model author: Md Sakib Rayhan (State University of Bangladesh).
- TypeArchitectural presentation model
- ProjectDesign of an Exhibition Center, Purbachal, Dhaka
- Scale1/16" = 1'-0" (1:192), written on the base
Have a project in mind?
Tell us what you want to build, share a sketch or a model file, and we will prepare a quote.
