Custom 19-inch rack mount for a network switch power supply, 3D printed as a batch
A batch of grey 3D printed rack mount trays and side rails made to hold the power supply of a UniFi Pro Max 16 PoE switch and fit a standard 19-inch rack.
Specifications
- Process
- FDM 3D printing
- Colour
- Grey
- Part
- Rack mount trays and side rails
- Holds
- Power supply of a UniFi Pro Max 16 (PoE) switch
- Fits
- Standard 19-inch rack (as posted)
- Quantity
- Batch of identical trays and rails
- Features
- Moulded retaining clips, cable cut-outs, mounting tabs with locating pins
- Completed
A customer needed a way to mount the power supply for a UniFi Pro Max 16 (PoE) switch inside a standard 19-inch rack. PrototypeBD 3D printed a custom rack mount for it.
What was printed

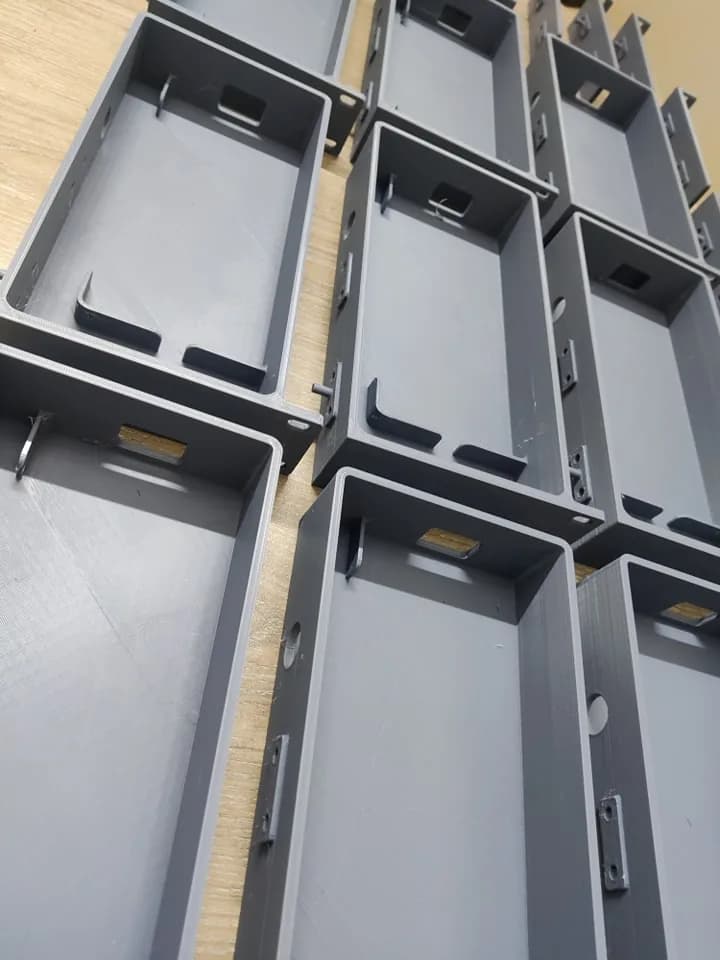

- Open trays sized to hold the power supply, with retaining clips moulded into the floor and square cut-outs in the end walls for cables;

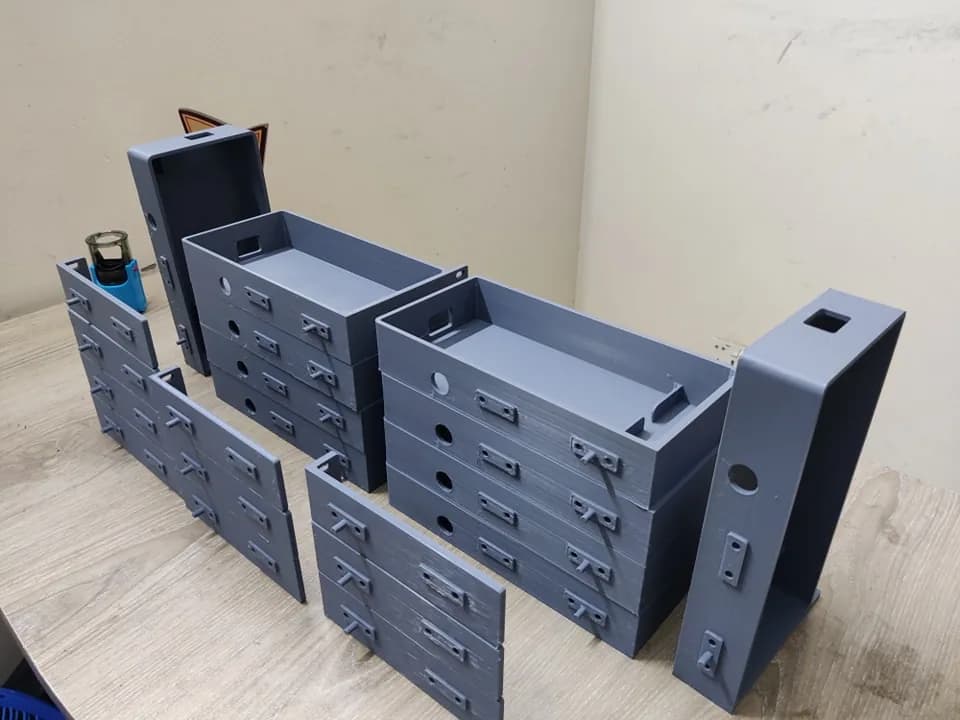

- side rails and end plates with raised mounting tabs and small locating pins, so the parts join without loose brackets;
- round holes in the side walls.

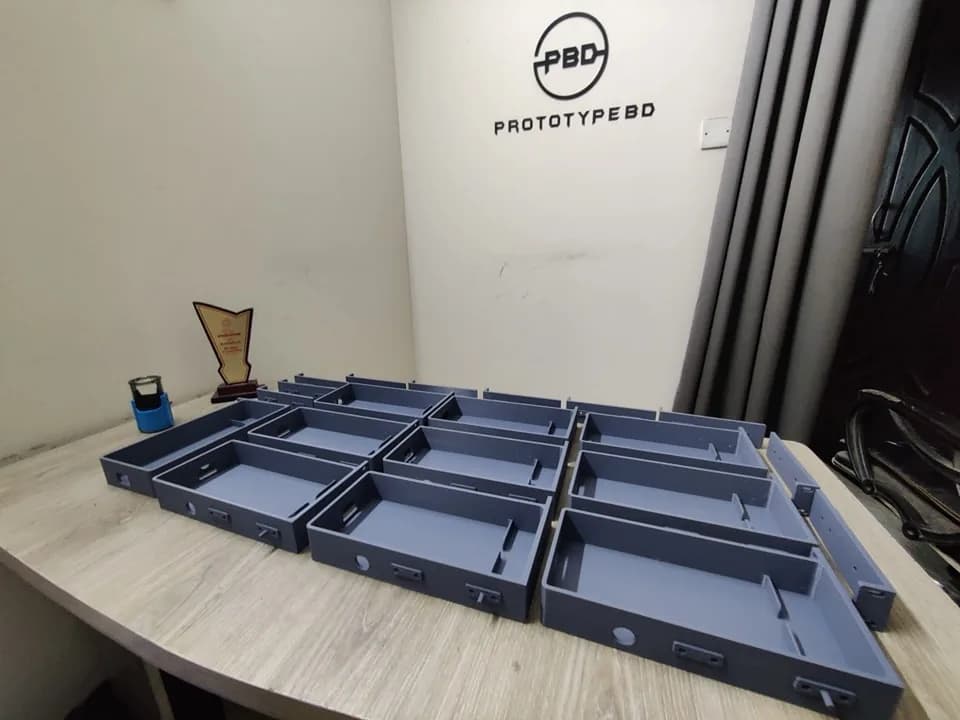

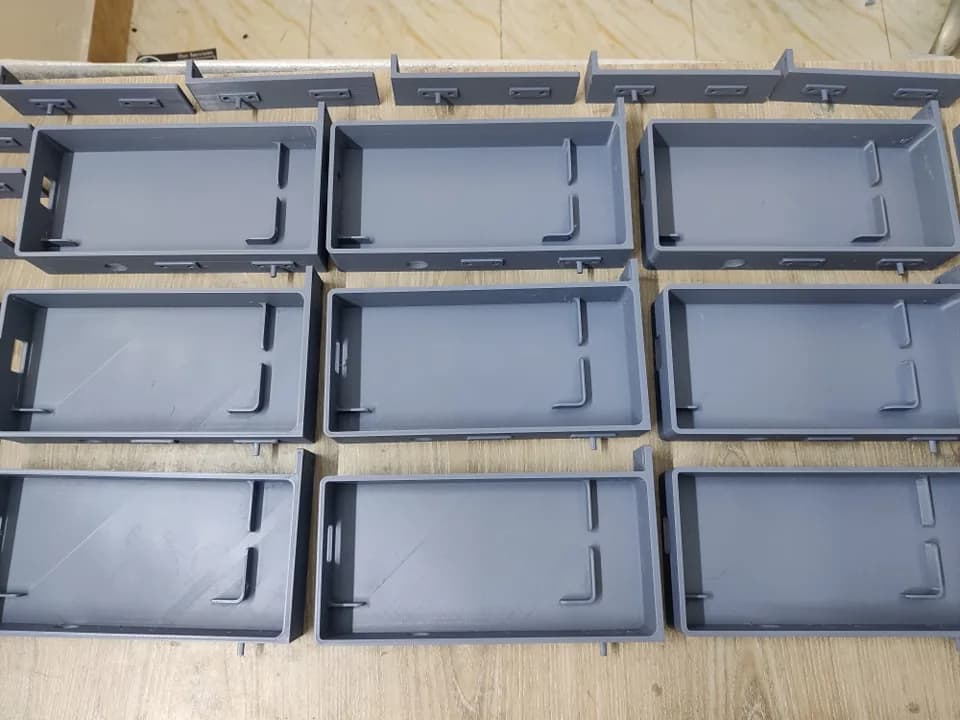

The photos show the full batch laid out and stacked on the workshop table: many identical trays and rails, all printed in one grey filament so the finished rack looks uniform.
Why print it
Network racks are standard, but what goes inside them often is not. A printed mount can be shaped around one specific device and then repeated as many times as there are units to mount, with every copy coming from the same file.
Need a mount, tray or adapter for your own equipment? Send a model for a price, or send the device dimensions and we can design it.
