CAD Design & Reverse Engineering
Parts and models that PrototypeBD drew in 3D CAD before printing: rig equipment, bottles for a client, a re-fitted mouse shell and a bike chain cover.
Every project here started with PrototypeBD's own CAD work, not a ready-made file: oil and gas equipment modelled from scratch, bottle samples designed for Bajaj Bangladesh Ltd., a client's mouse shell re-fitted and lightened, and a split bicycle chain cover.
Bring a sketch, a photo, a broken part or a set of measurements. We model it, send the file (STEP or STL) and can print it too. Request a CAD design quote.
Projects

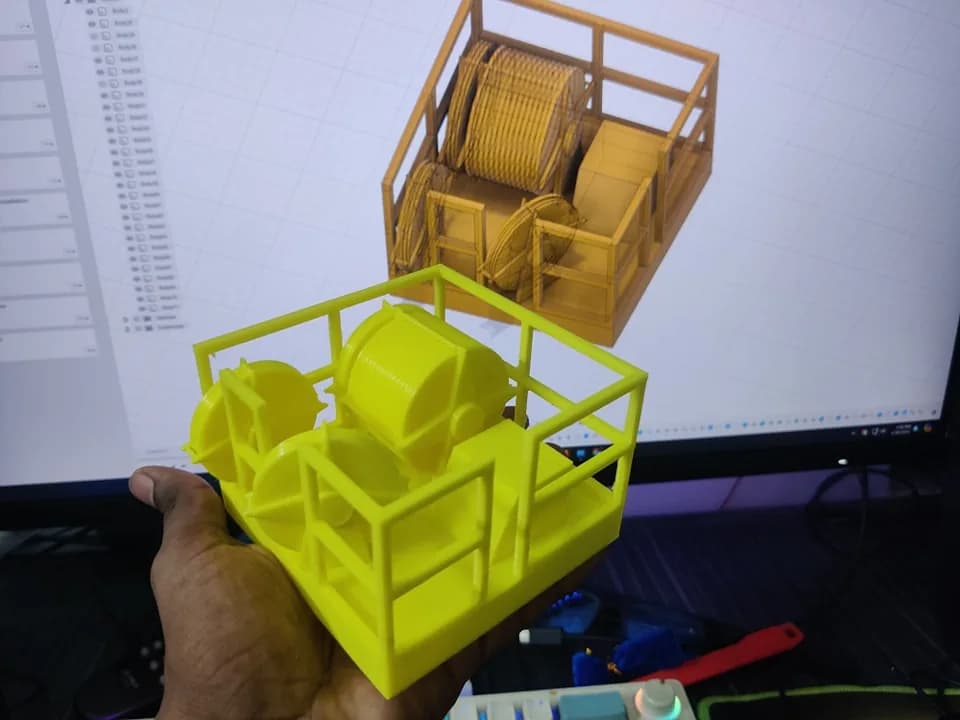

Crown block model for the oil and gas industry, modelled in 3D CAD and printed by PrototypeBD
A desk-sized model of a drilling-rig crown block, 3D designed in-house and printed in one colour. One photo shows the CAD model on screen next to the printed part.
- ObjectCrown block (drilling-rig equipment) model
- CAD3D designed by PrototypeBD (as posted)
- ProcessFDM 3D printing

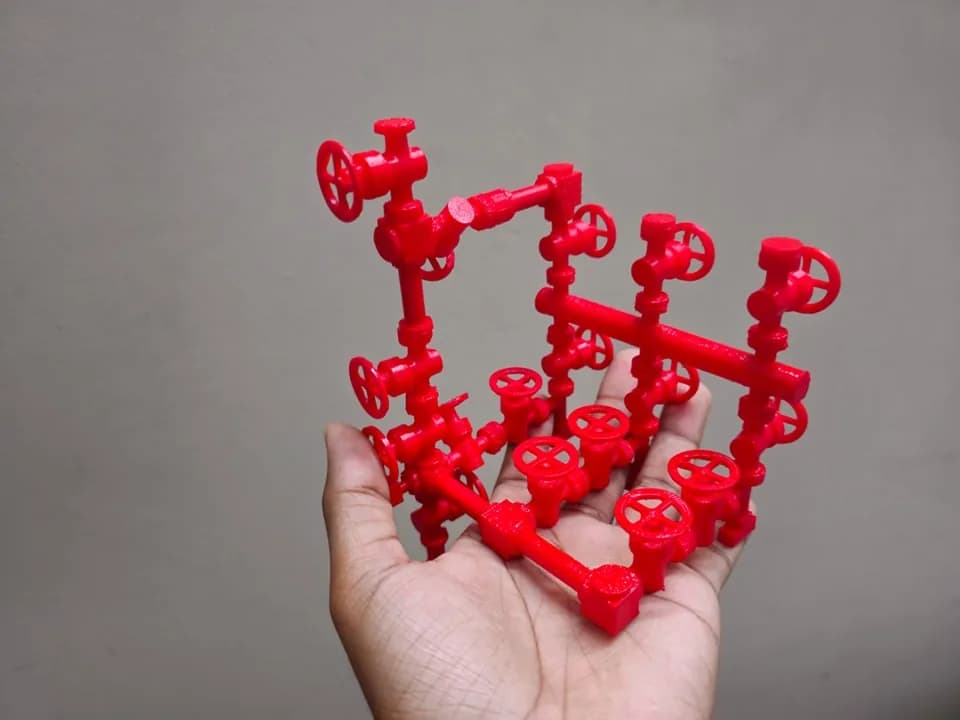

Choke manifold model with hand-wheel valves, 3D designed and manufactured by PrototypeBD
A palm-sized choke manifold model from the oil and gas industry: pipework, a header and rows of valves with hand wheels, 3D designed in-house and printed in red and in white.
- ObjectChoke manifold (oil and gas well control) model
- CAD3D designed and manufactured by PrototypeBD (as posted)
- ProcessFDM 3D printing

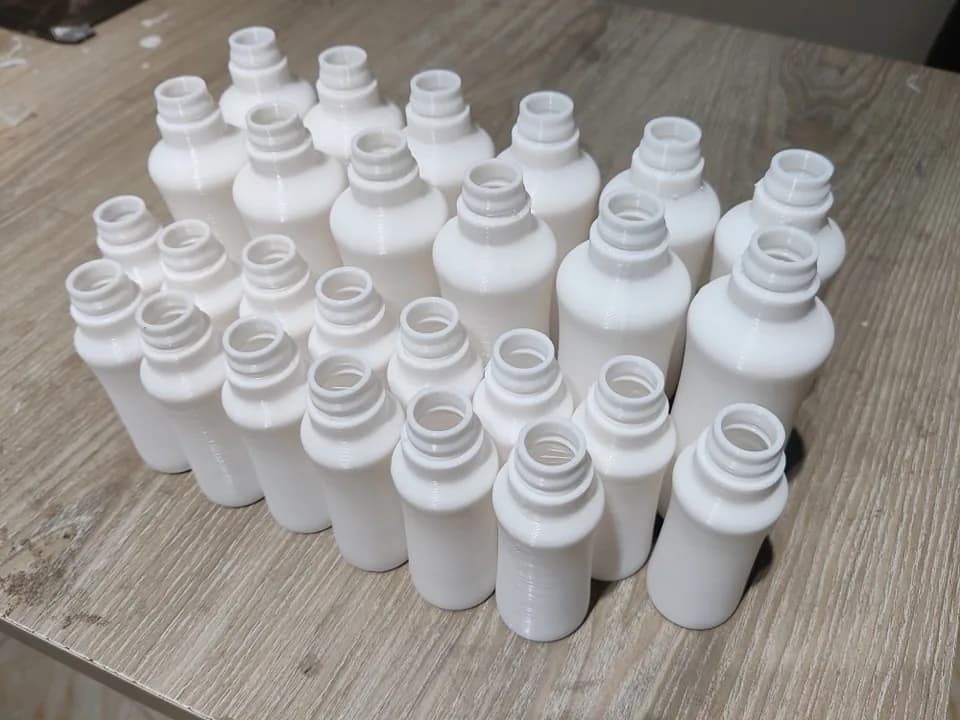

Bottle prototypes for Bajaj Bangladesh Ltd., 3D designed and printed by PrototypeBD
A batch of white bottle prototypes in two sizes for Bajaj Bangladesh Ltd. PrototypeBD made the 3D design and printed the bottles, with stepped, ribbed necks.
- ClientBajaj Bangladesh Ltd. (as posted)
- ObjectBottle prototypes, two sizes
- CAD3D design by PrototypeBD (as posted)

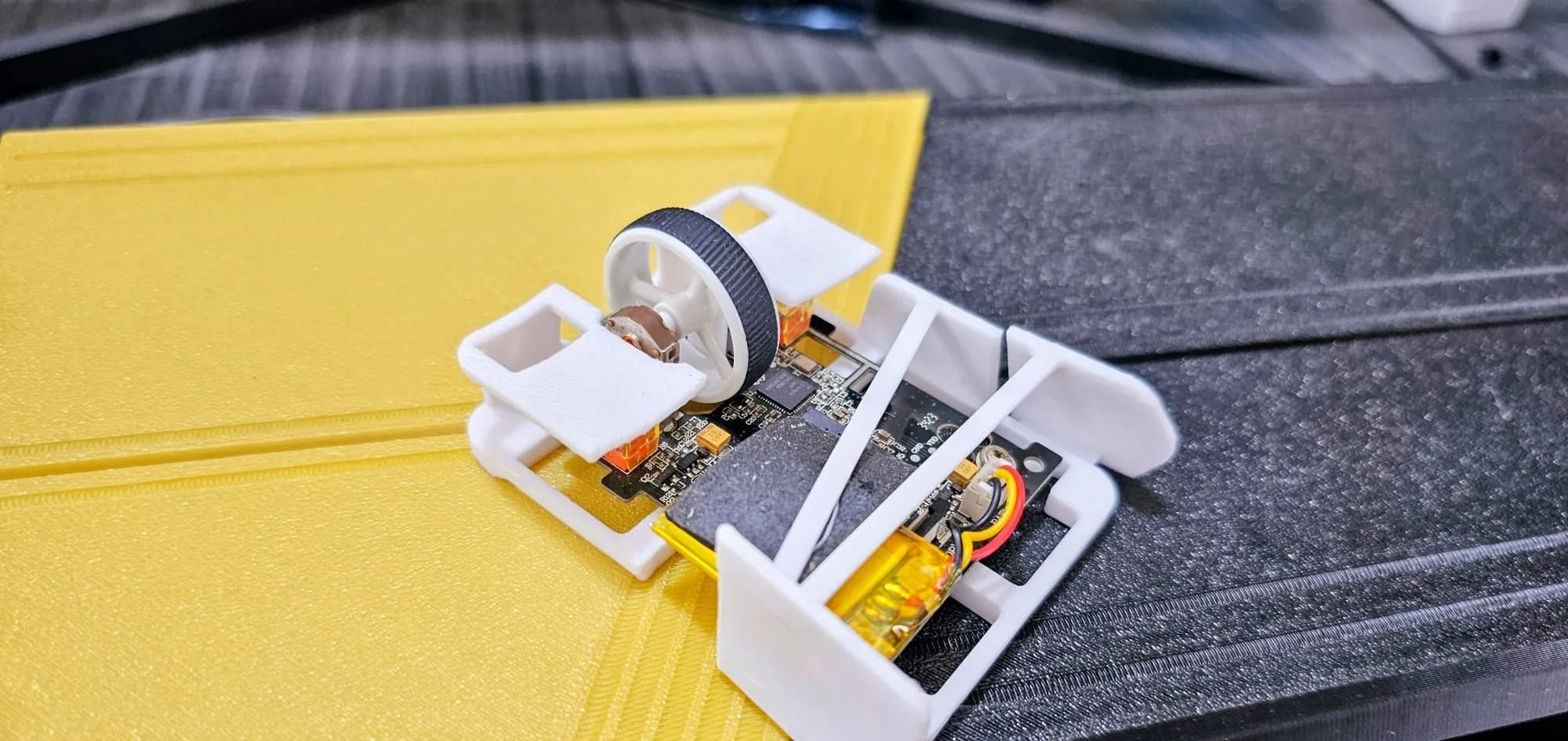

Ultra-light computer mouse shell, modified in CAD to fit and printed at about 40 g
A client asked for a mouse case under 45 g (without battery) based on an existing design. PrototypeBD adjusted the fit, slimmed the structure and printed an open-frame shell of about 40 g.
- ObjectUltra-light mouse shell
- BriefUnder 45 g without battery, based on the client's design
- CAD workFit modified and structure optimised by PrototypeBD

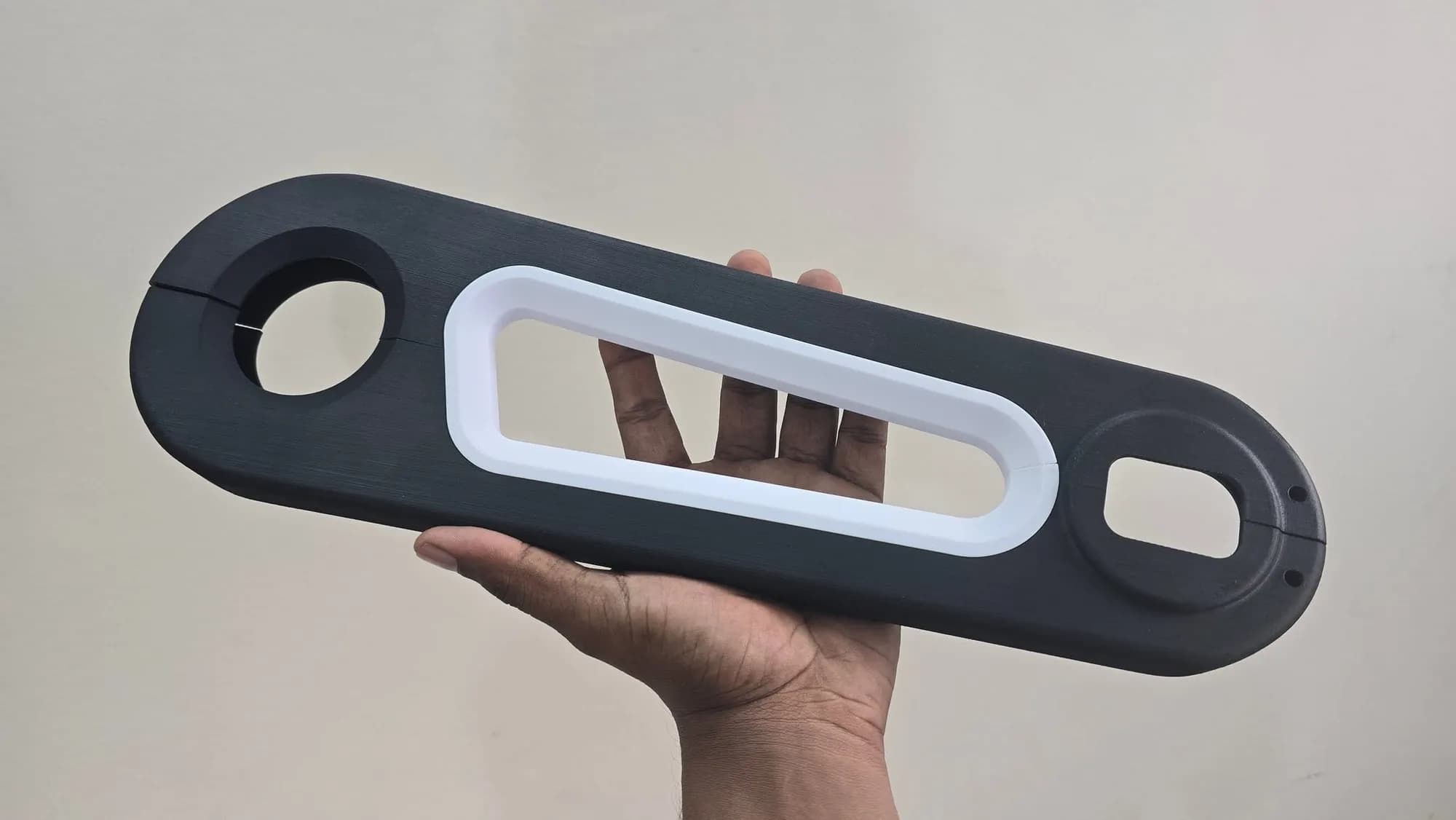

Two-tone bicycle chain cover, designed and 3D printed in-house
A long black bicycle chain cover with a white window frame, designed and fabricated at PrototypeBD. It splits into two shells around the chainring and rear hub, with the white frame between them.
- ObjectBicycle chain cover
- CADDesigned by PrototypeBD (as posted)
- ProcessFDM 3D printing
Have a project in mind?
Tell us what you want to build, share a sketch or a model file, and we will prepare a quote.
