AlgoLaser DIY KIT MK2 Diode Laser Engraver

About this product

Open-frame diode laser engraver with a built-in 3.5-inch AlgoOS touchscreen, Wi-Fi control and a 400 × 435 mm working area. Choose the 5W or 10W blue laser, or the 2W 1064 nm infrared option for metal and plastic marking.

৳36,000

In Stock

Version5W
1

Estimated shipping: 2-3 Days

Chat with us about this product
Chat on WhatsApp
Add to compare
Save for later
Product overview

Professional output.
Less setup, more making.

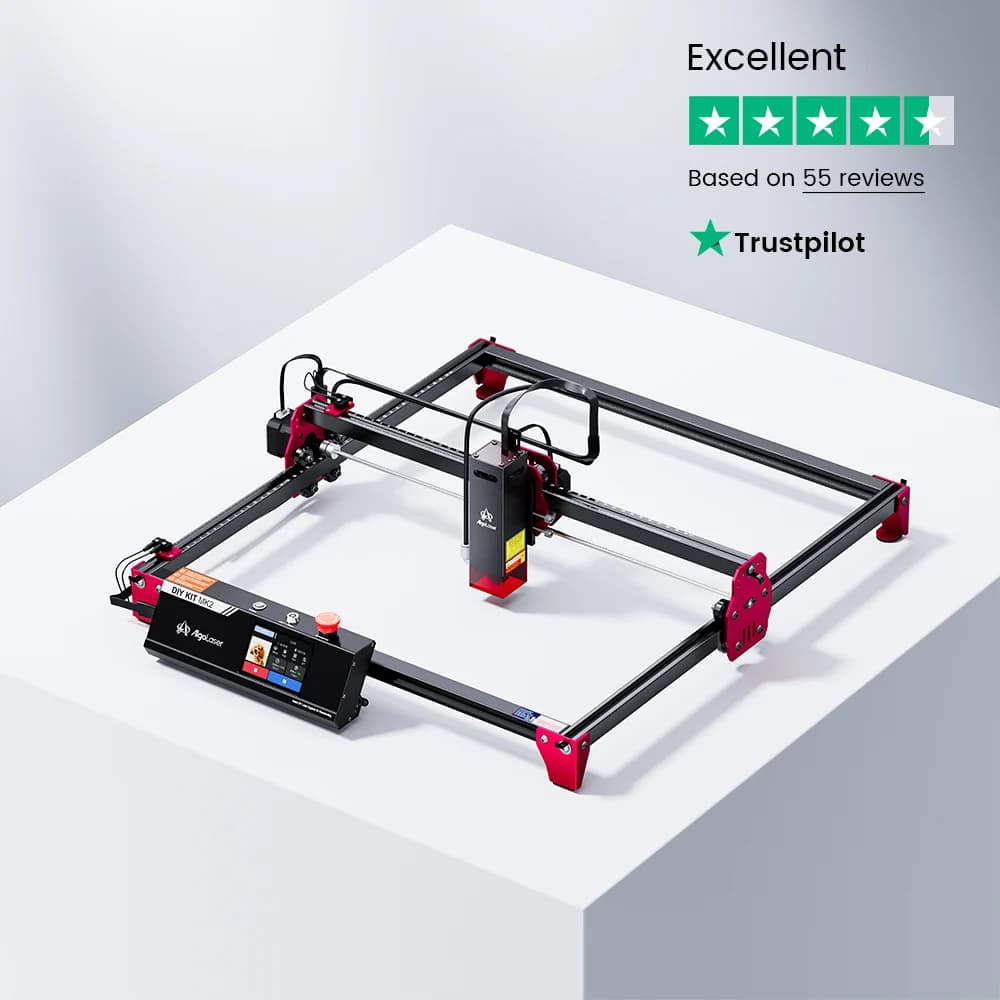

AlgoLaser DIY KIT MK2: open-frame laser engraver with a built-in touchscreen

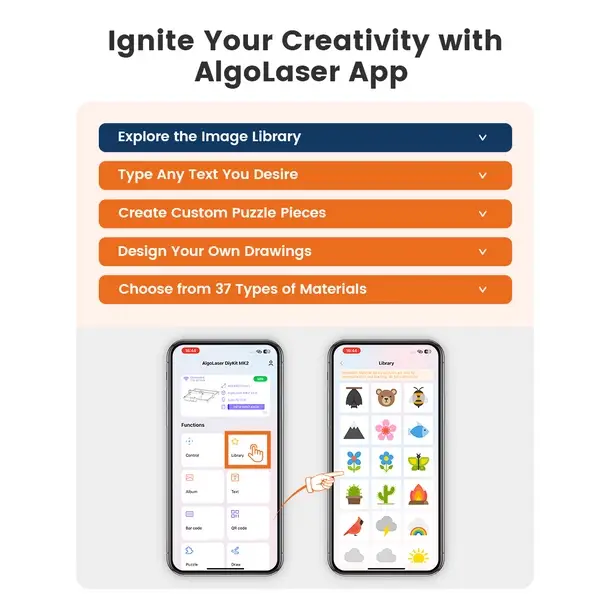

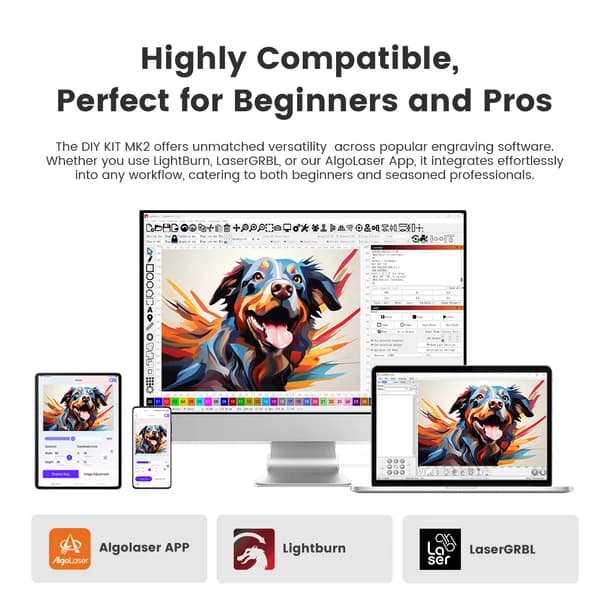

The DIY KIT MK2 is AlgoLaser's entry-level open-frame laser engraver. The control box on the front frame has a 3.5-inch IPS touchscreen running AlgoOS, so you can load a picture, pick a material preset and start a job without a computer. When you want more control, connect over Wi-Fi from the AlgoLaser app or use LightBurn or LaserGRBL on a PC.

It is a good fit for makers, students, gift shops and small businesses in Bangladesh who want to engrave wood, leather, cardboard and coated surfaces, and to cut thin wood and paper.

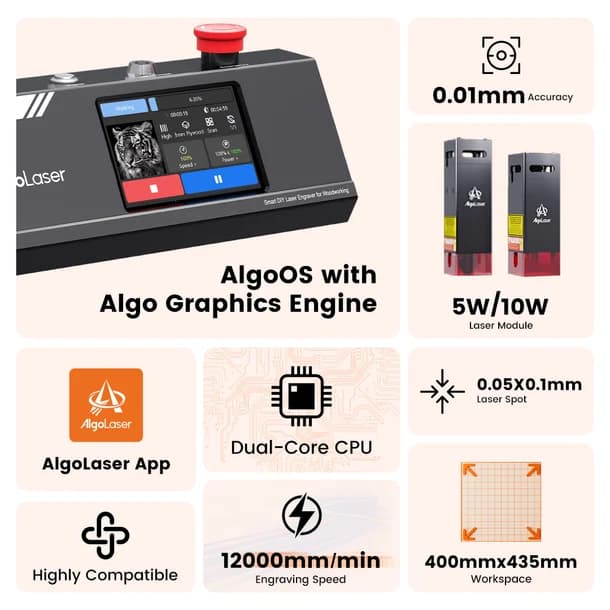

AlgoLaser DIY KIT MK2 spec highlights: AlgoOS touchscreen, 5W/10W module, 0.05 × 0.1 mm spot, 12,000 mm/min, 400 × 435 mm workspace
Official AlgoLaser spec overview: AlgoOS screen, 5W/10W module, 0.05 × 0.1 mm spot, 12,000 mm/min and a 400 × 435 mm workspace.

Which version should I choose?

  • 5W: blue diode laser for engraving wood, leather, paper and cardboard, and cutting thin sheet material. The lower-cost way to start.

  • 10W (ALM-10BD module): the same machine with the 10W module, for faster engraving and deeper cuts in wood. AlgoLaser lists both modules with a 0.05 × 0.1 mm laser spot.

  • 2W 1064 nm infrared: an infrared module for marking metal, black plastic and leather. It engraves only and does not cut. AlgoLaser sells the 2W 1064 nm module (ALM-2IE) as an add-on for the DIY KIT MK2, so ask us what is in the box with this option before you order.

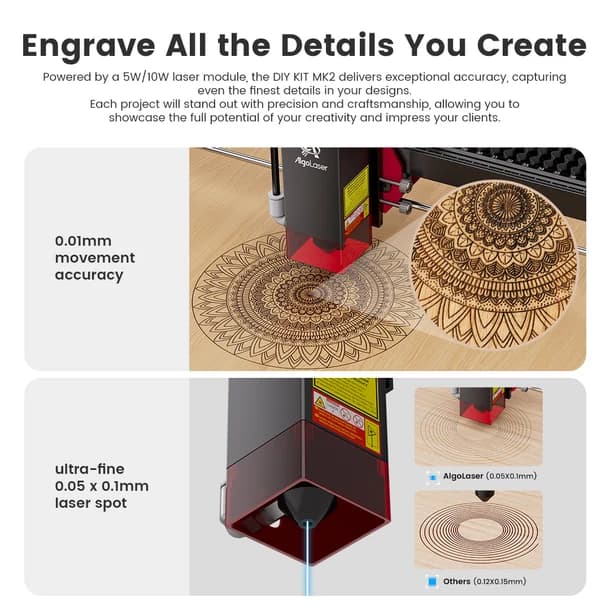

AlgoLaser DIY KIT MK2 laser module close-up with 0.05 × 0.1 mm laser spot and 0.01 mm movement accuracy
The 5W/10W module: 0.05 × 0.1 mm laser spot and 0.01 mm movement accuracy (AlgoLaser figures).

Engrave from the screen with AlgoOS

AlgoOS on the touchscreen has a built-in image library, material presets, drag-and-zoom positioning and interrupt-and-resume, and it receives updates over the air. A dual-core CPU runs the machine, and the firmware supports more than 17 languages.

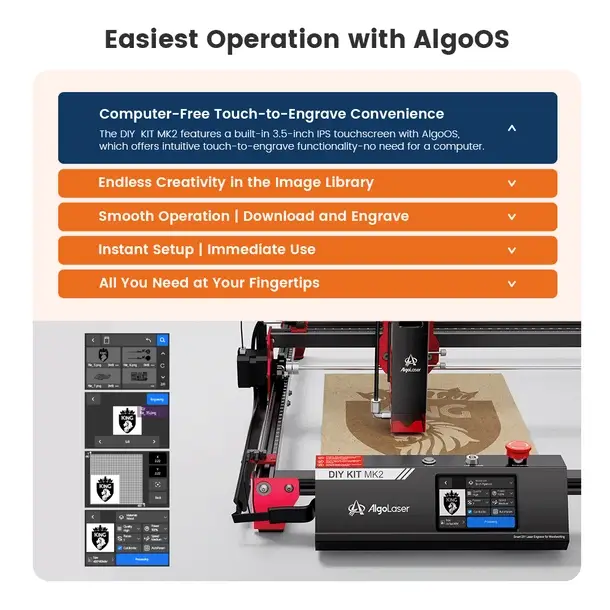

AlgoOS on the AlgoLaser DIY KIT MK2 3.5-inch touchscreen, engraving without a computer
Touch-to-engrave on the 3.5-inch AlgoOS screen.

Working area and extension

The standard working area is 400 × 435 mm. With the DIY KIT MK2 extension kit (sold separately), AlgoLaser lists an extended area of up to 400 × 880 mm for long signs and panels.

AlgoLaser DIY KIT MK2 standard 400 × 435 mm work area compared with the 400 × 880 mm extended area using the optional extension kit
Standard area vs. extended area. The extension kit is an optional accessory and is not included.

What's in the box

AlgoLaser's machine package contains the rear panel, X-axis, left and right Y-axis and front assemblies, the control box with screen, the laser module, laser safety goggles, power adapter and power cable. An air pump is not included. AlgoLaser offers air assist as an optional accessory; it helps keep cuts clean and the lens free of smoke. Ask us which AlgoLaser air pump suits your machine.

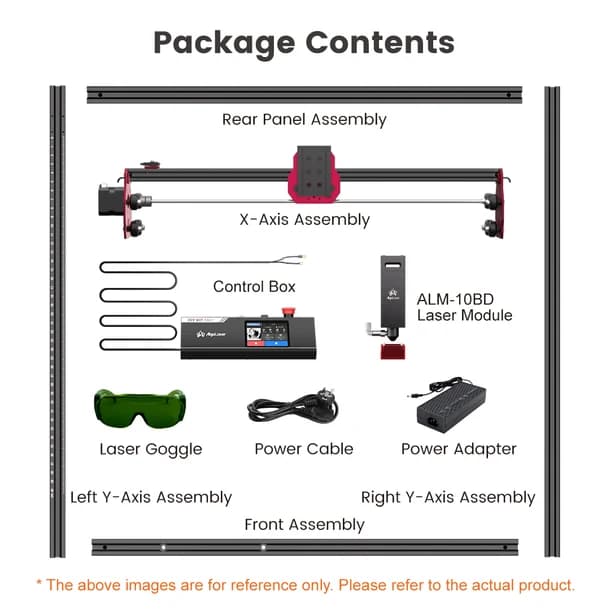

AlgoLaser DIY KIT MK2 package contents: frame assemblies, control box, ALM-10BD laser module, goggles, power adapter and cable
Official package contents (10W shown). No air pump in the machine package.

If you choose the 2W 1064 nm option, AlgoLaser's module package includes the IR module, dovetail fixture, ALC board and cables, its own power adapter and the screws and Allen keys to fit it.

AlgoLaser 2W 1064 nm infrared laser module ALM-2IE and its package contents
The 2W 1064 nm infrared module and its parts, as supplied by AlgoLaser.

Safety

The MK2 has an emergency stop button and a child lock on the screen. It is an open-frame machine: always wear the supplied goggles, never leave it running unattended, and ventilate the room. AlgoLaser lists Level 1 laser safety only with its optional enclosure. Do not engrave or cut PVC or vinyl.

Accessories and related machines

Ask us to confirm that an accessory fits your machine before ordering.

Specifications are AlgoLaser's published figures. Cutting and engraving results depend on the module, material, focus and settings; test on a sample first.

FAQ

AlgoLaser DIY KIT MK2 Diode Laser Engraver: frequently asked questions

Is an air pump included with the DIY KIT MK2?

No. AlgoLaser's MK2 machine package has no air pump; air assist is an optional accessory. Ask us which AlgoLaser air pump suits your machine.

What can the 2W 1064 nm infrared option do?

It marks metal, black plastic and leather. It engraves only and does not cut. AlgoLaser sells the 2W 1064 nm module (ALM-2IE) as an add-on for the MK2, so ask us what is in the box with this option.

How big is the working area?

400 × 435 mm as standard. AlgoLaser lists up to 400 × 880 mm with the DIY KIT MK2 extension kit, which is sold separately.

Price, warranty & delivery in Bangladesh

AlgoLaser DIY KIT MK2 Diode Laser Engraver price in Bangladesh is ৳36,000 – ৳79,020 depending on the variant at PrototypeBD, with delivery across Bangladesh.

Price in Bangladesh
৳36,000 – ৳79,020 depending on the variant
Availability
In stock – ready to ship.
Delivery
2-3 Days anywhere in Bangladesh by courier; the delivery charge is confirmed before dispatch.
Warranty
PrototypeBD's own warranty service, handled at our workshop in Dhaka (we are not an authorised AlgoLaser reseller, so manufacturer warranty claims are not available). Ask us for the exact terms for your model before you buy, and keep your invoice and serial number for claims.
Returns
Accepted within 3 days of delivery, in store (Dhaka) or by courier; the return delivery cost is paid by the customer.
