AlgoLaser Alpha MK2 Laser Engraver

AlgoLaser Alpha MK2

Select an open-frame machine or a Class I safe-enclosure solution under the same model. Open-frame options are 10W (without air pump), 20W, 40W and 2W 1064 nm. The enclosure solution is listed in 20W and 40W versions.

Smart operation

• 3.5-inch IPS touchscreen; direct original-picture engraving and SVG cutting.

• Smarter Laser Motherboard V4.1 with two 32-bit MCUs and Smart Laser Firmware.

• Upgraded laser-module fixture, spring-loaded mechanical focus and new nylon rollers.

• Smart module features: flame alert, lens-cleaning reminder and air-pressure monitoring.

• The open-frame 20W version includes an integrated air pump; the 10W version is explicitly supplied without one. Other open-frame air-pump configurations should be confirmed before ordering.

Safety features

Safety lock, machine-offset and tilt detection, USB-connection protection, voltage and current safety control, emergency stop and temperature monitoring.

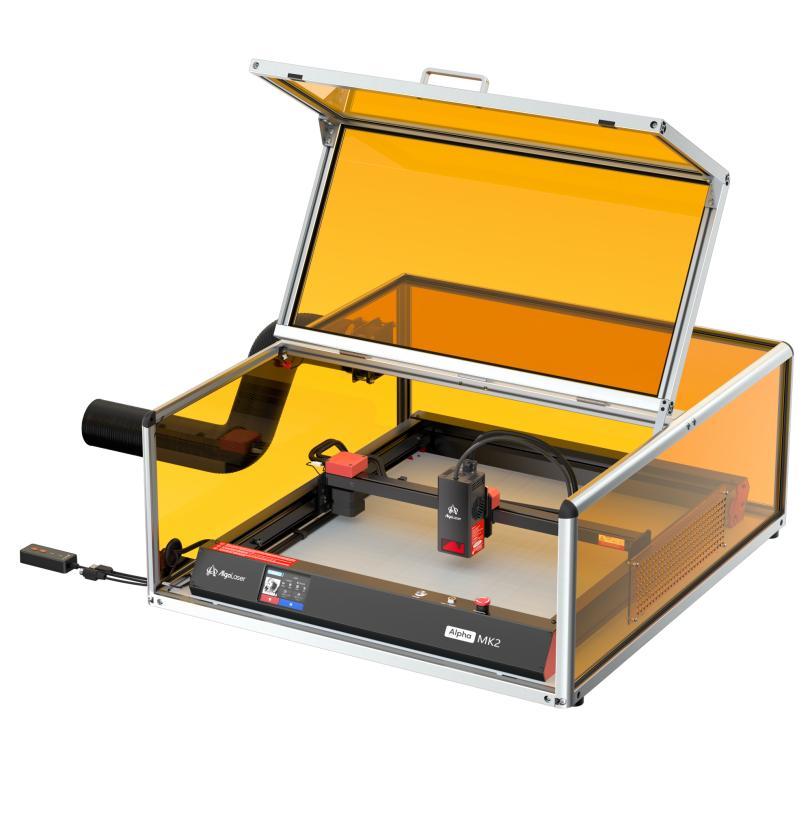

Enclosed Class I solution

The enclosed configuration adds auto shutoff, laser-light filtering, an efficient ventilation system, a built-in HD camera for auto-positioning, smart lighting and all-round smart control. The manufacturer lists FDA Class I certification for this solution. These enclosure-specific features do not apply to the open-frame machine.

Laser options

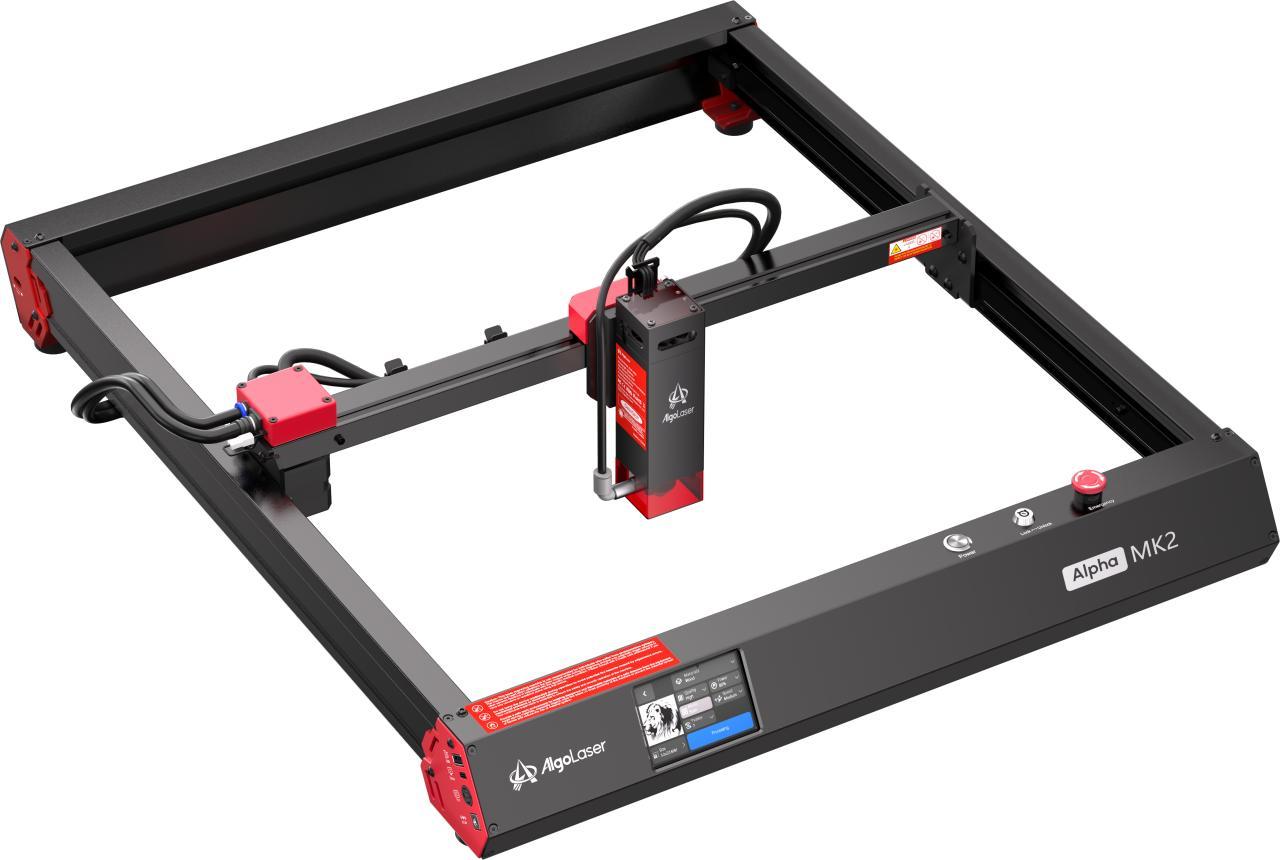

• 10W: 10,000 mW; 0.05 × 0.10 mm laser spot.

• 20W: second-generation COS, 20,000 mW; 0.15 × 0.12 mm spot.

• 40W: second-generation COS, 40,000 mW; 0.175 × 0.15 mm spot.

• 2W 1064 nm: laser spot no larger than 0.04 × 0.05 mm.

Single-pass cutting capacity — 20W

Birch plywood 10 mm; basswood plywood 12 mm; steel 0.1 mm; pine board 10 mm; eucalyptus plywood 5 mm; black acrylic 6 mm; gray cardboard 3 mm; cherry wood 8 mm; black ABS board 4 mm; MDF 3 mm; paulownia wood 12 mm; bamboo 8.5 mm.

Manufacturer information: 12-month warranty against manufacturing defects, free software, FAQ resources and online technical support. Cutting capacities are manufacturer-listed single-pass figures and depend on material and settings.

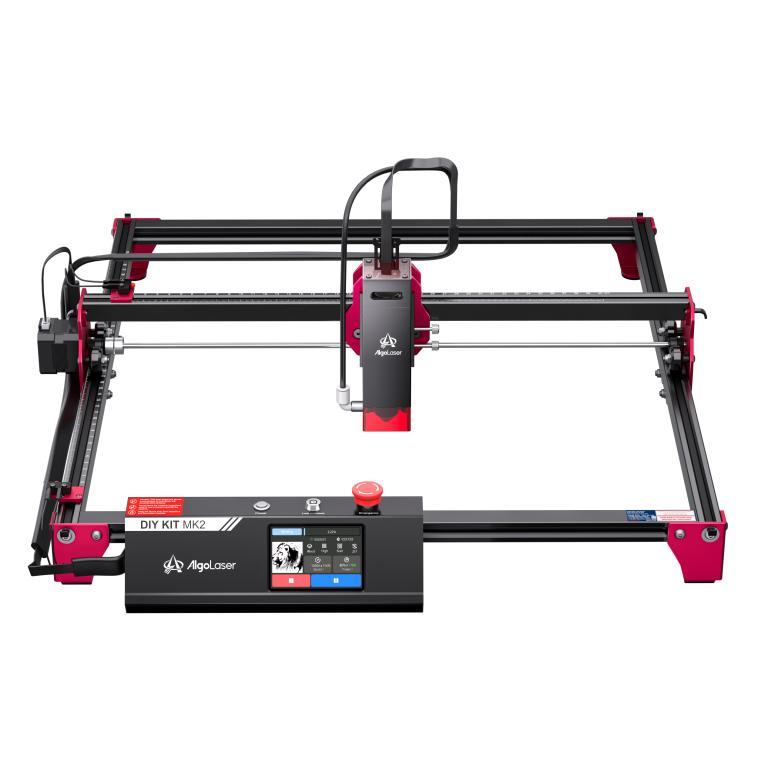

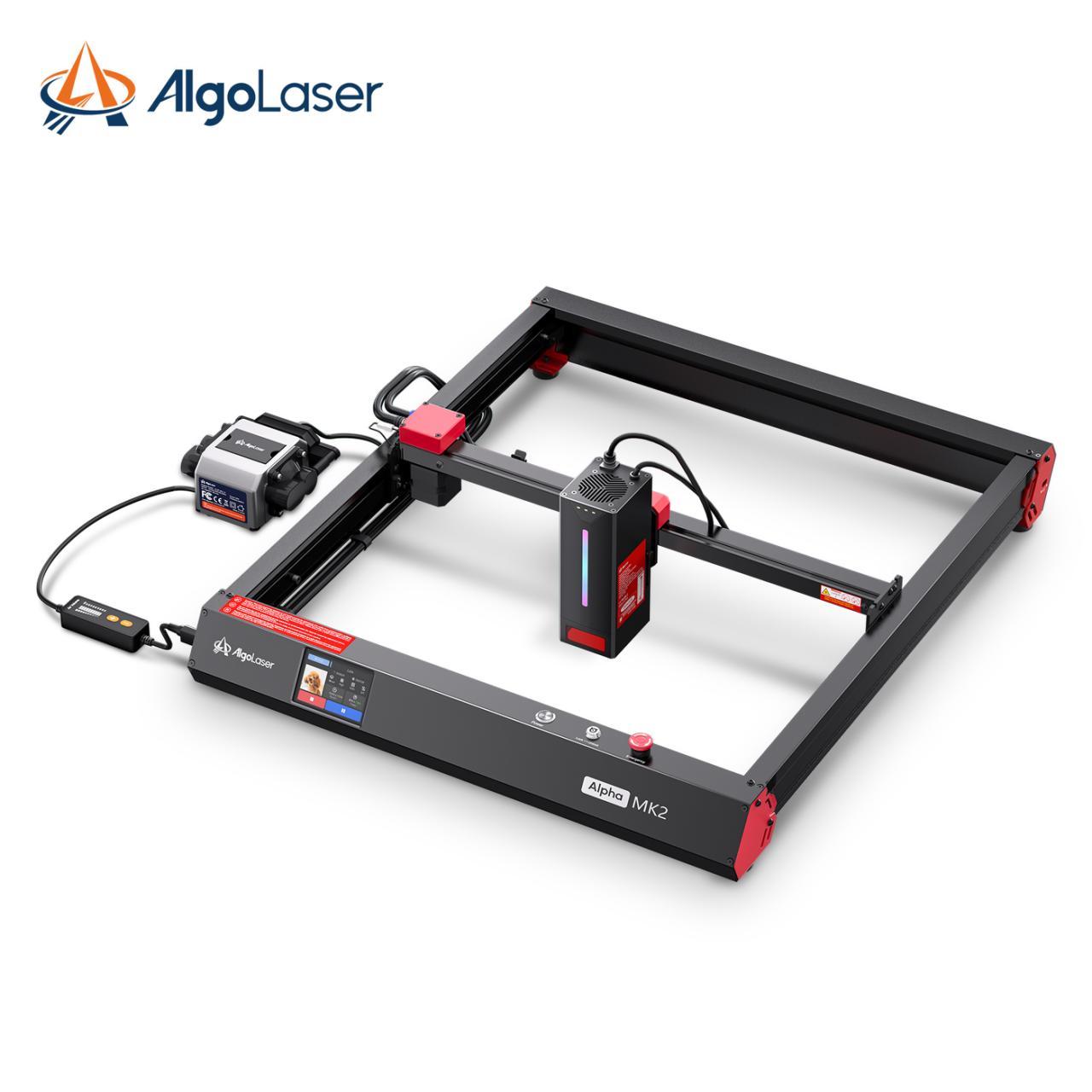

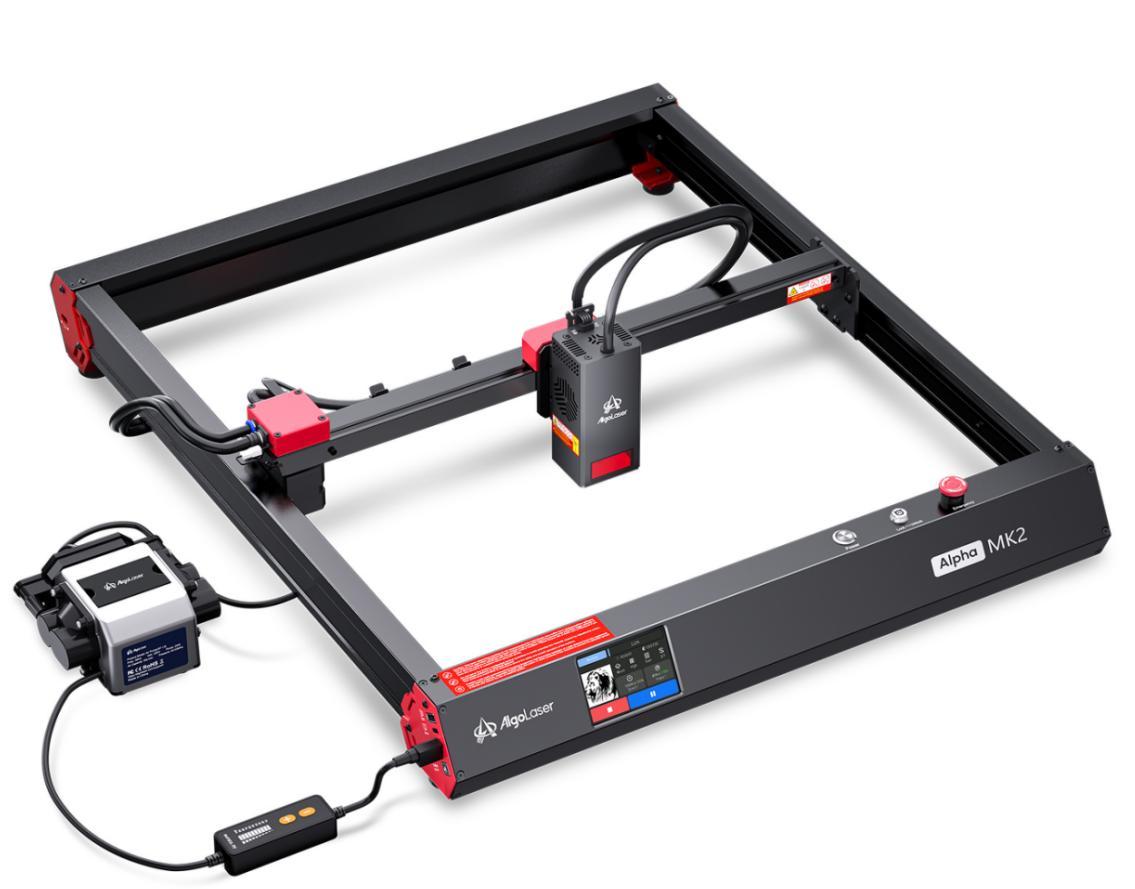

Machine photos and configurations

Frequently asked questions

Which Alpha MK2 configurations can I choose?

Open-frame options are 10W, 20W, 40W and 2W 1064 nm. The Class I enclosure solution is listed in 20W and 40W configurations.

Does every Alpha MK2 have the same working area?

No. The open-frame 10W and 20W models list 400 × 410 mm, while the open-frame 40W lists 400 × 395 mm. The enclosure section lists 400 × 410 mm; confirm the selected 40W enclosed configuration before ordering.

Is an air pump included in every version?

The open-frame 10W is listed without an air pump. An integrated pump is listed for the open-frame 20W and the enclosed solution. Confirm the package contents for your selected variant.

How do I get the price and availability in Bangladesh?

Contact PrototypeBD with your selected laser power and configuration to confirm the current price, availability and delivery details. No price is listed on this page.

Are the listed cutting capacities guaranteed for every material?

Manufacturer cutting figures depend on the selected module, material, focus, speed and other settings. Test an appropriate sample and confirm suitability before production work.
