Prototype BD
Entry-level all-in-one smart touchscreen laser engraver with a 400 × 435 mm work area and 5W, 10W or 2W 1064 nm options.
Contact for price
Select your preferred option and contact us for pricing and availability.
Request a quoteSKU: ALG-DIY-MK2

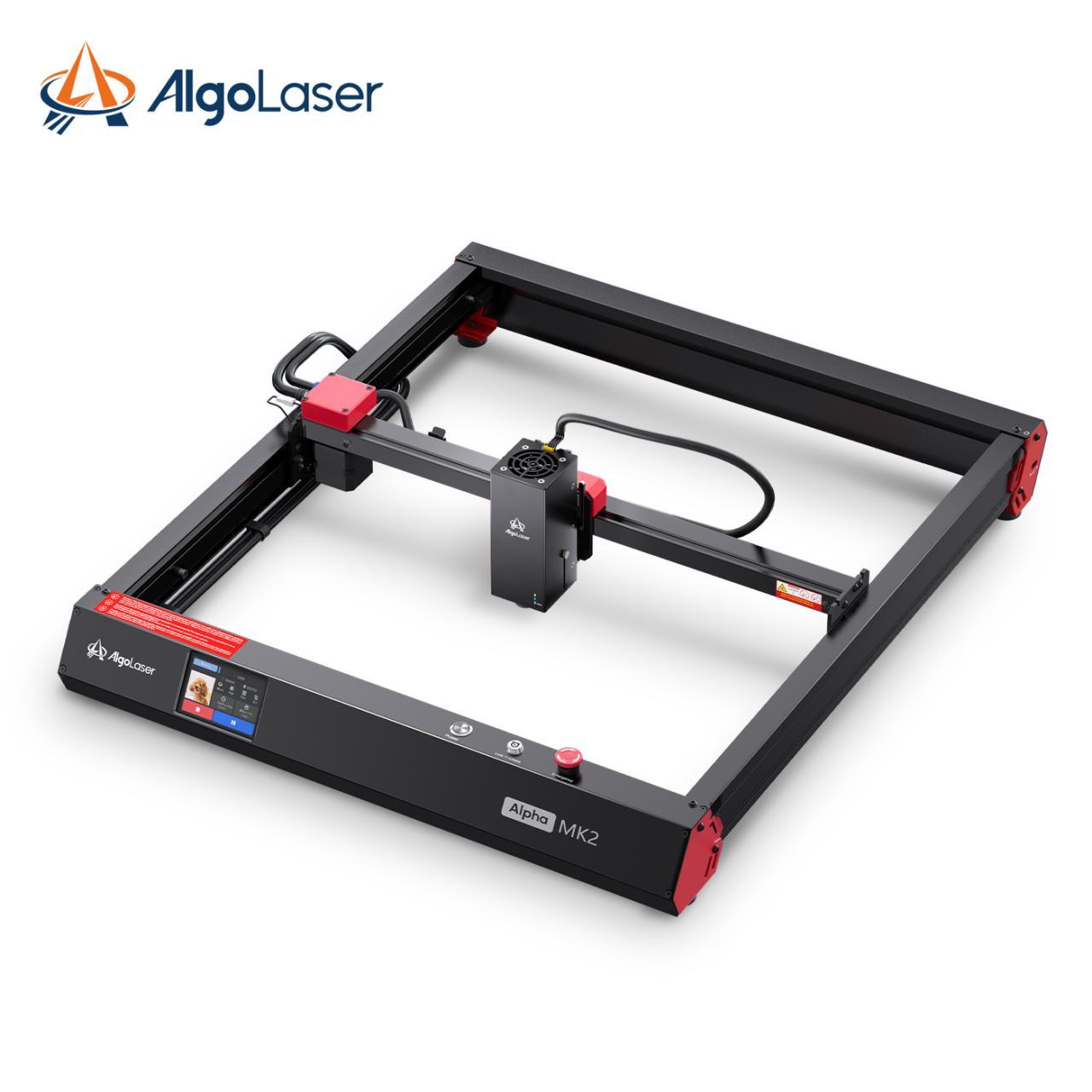

An entry-level all-in-one smart touchscreen laser engraving machine. Select a 5W, 10W or 2W 1064 nm laser configuration within this product.
Safety lock, machine-offset and tilt detection, USB-connection detection and protection, voltage/current safety control and emergency stop.
Use the touchscreen, APP, LaserGRBL (free) or LightBurn (paid). Connect through USB, 2.4 GHz WiFi, Web UI or the listed 8 GB TF card.
The manufacturer lists 5,000 mW and 10,000 mW modules. Its machine specifications show a 0.05 × 0.10 mm laser spot; no separate 1064 nm spot specification is supplied.
Manufacturer information: 12-month warranty against manufacturing defects, free software, FAQ resources and online technical support. Cutting capacities are manufacturer-listed single-pass figures and depend on material and settings.
The manufacturer lists 5W, 10W and a 2W 1064 nm configuration. They are selectable variants under this product.
The DIY KIT MK2 has a listed 400 × 435 mm working area and a maximum working speed of 12,000 mm/min.
The listed controls are the 3.5-inch IPS touchscreen, app, free LaserGRBL and paid LightBurn. Connections include USB, 2.4 GHz WiFi, Web UI and an 8 GB TF card.
Contact PrototypeBD with your selected laser power and configuration to confirm the current price, availability and delivery details. No price is listed on this page.
Manufacturer cutting figures depend on the selected module, material, focus, speed and other settings. Test an appropriate sample and confirm suitability before production work.
