AlgoLaser Pixi Laser Engraver

AlgoLaser Pixi

A fully assembled consumer-grade smart touchscreen laser engraving machine with a compact 100 × 100 mm working area. The manufacturer lists Class I certification for Pixi.

Power and color choices

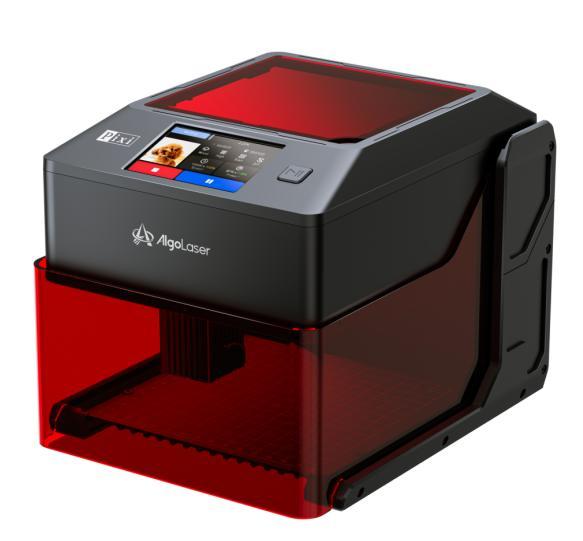

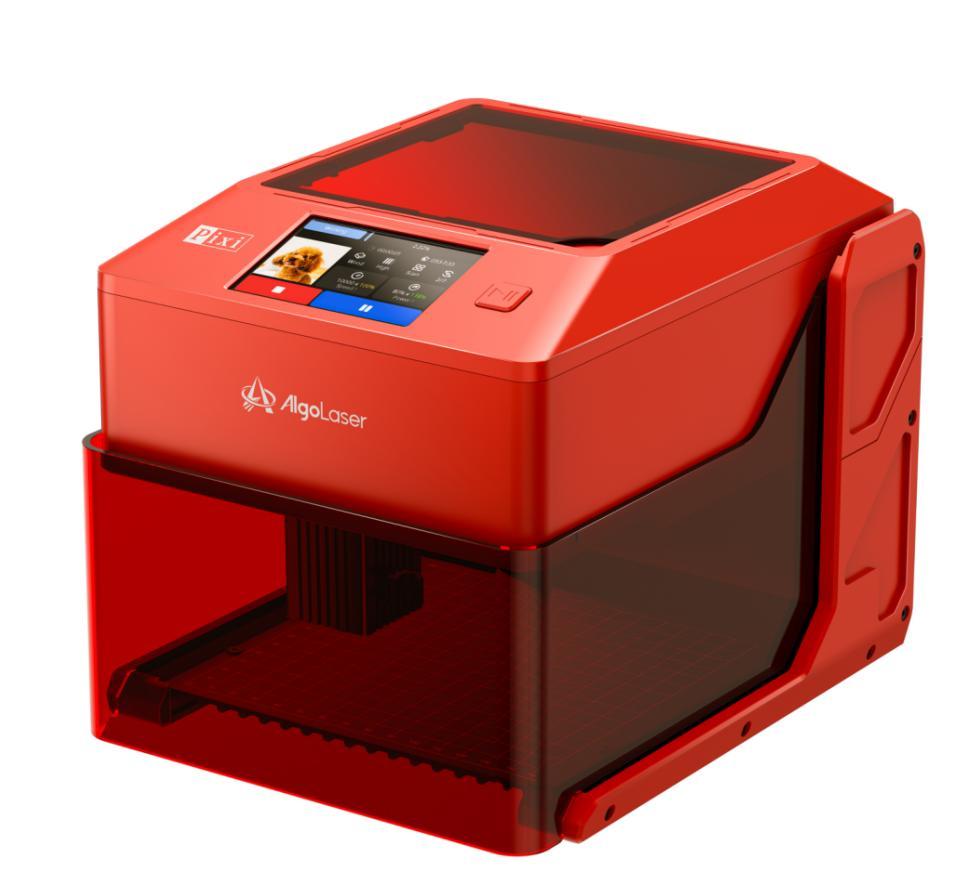

Choose 3W, 5W or 10W in red or black. The 1.5W 1064 nm option is available in red only. Power and color options are grouped together under this product.

Create directly on screen

• AlgoType: enter text on the touchscreen with two available fonts.
• AlgoSketch: draw directly on the screen.
• Reverse engraving without PC or APP photo processing.
• Interrupt recovery.

Design and safety

• Fully assembled: unbox and create.
• Dual-sided base: flat for engraving, grooved for airflow during cutting.

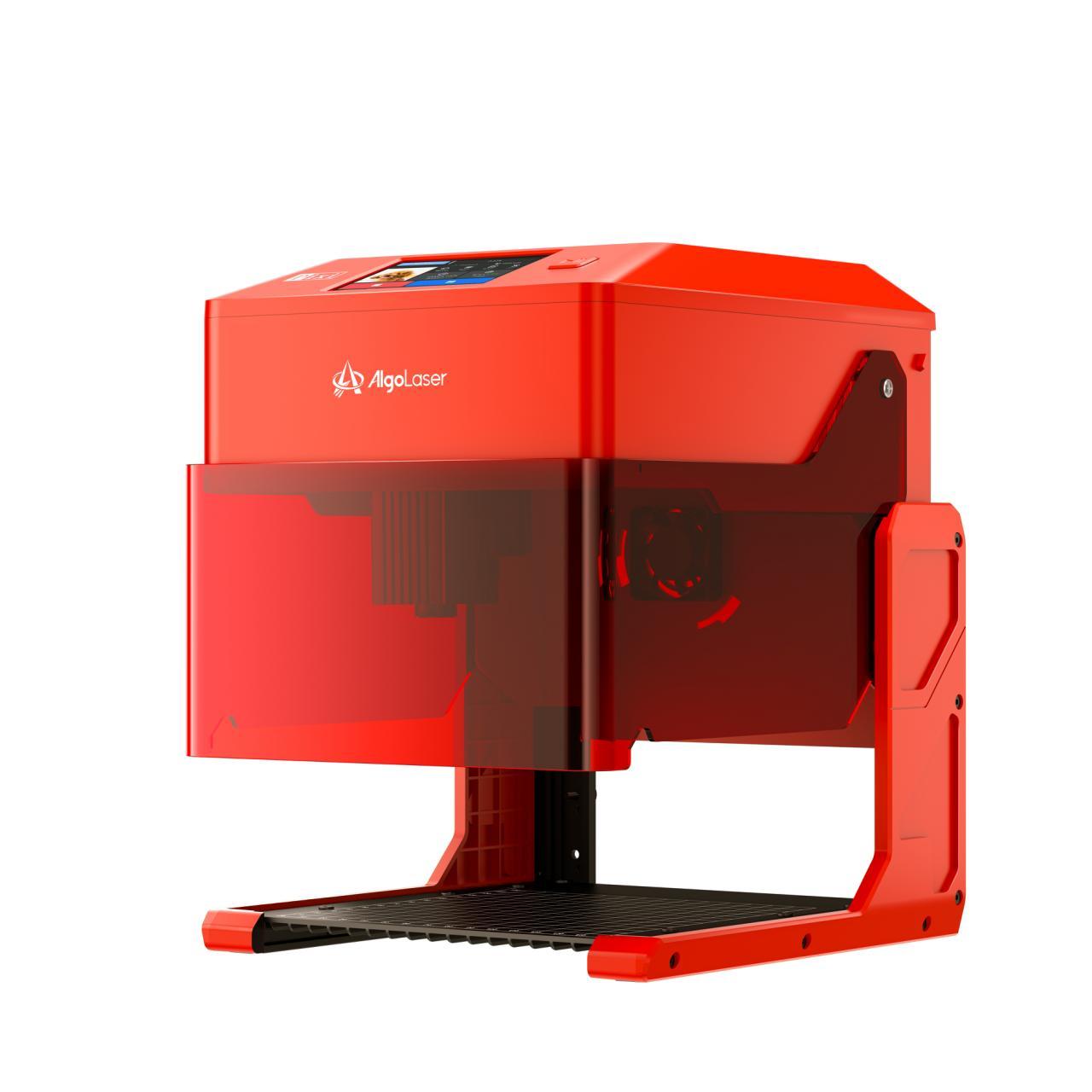

• Adjustable height for engraving taller objects.
• Machine-offset and tilt protection, USB-connection protection and voltage/current safety control.
• Class I laser system and lock screen, as listed by the manufacturer.

Laser specifications

5W: 5,000 mW luminous power and 0.03 × 0.09 mm laser spot. 10W: 10,000 mW luminous power and 0.15 × 0.12 mm laser spot. Separate spot dimensions for 3W and 1.5W 1064 nm are not supplied in this list.

Manufacturer information: 12-month warranty against manufacturing defects, free software, FAQ resources and online technical support. Cutting capacities are manufacturer-listed single-pass figures and depend on material and settings.

Machine photos and configurations

Frequently asked questions

Which Pixi power and colour variants are available?

The 3W, 5W and 10W configurations are listed in red and black. The 1.5W 1064 nm configuration is listed in red only.

How large is the Pixi working area?

Pixi has a compact 100 × 100 mm working area and a listed maximum working speed of 6,000 mm/min.

Does Pixi require assembly?

The manufacturer lists Pixi as fully assembled, with an adjustable height and a dual-sided base: a flat engraving surface and a grooved cutting surface.

How do I get the price and availability in Bangladesh?

Contact PrototypeBD with your selected laser power and configuration to confirm the current price, availability and delivery details. No price is listed on this page.

Are the listed cutting capacities guaranteed for every material?

Manufacturer cutting figures depend on the selected module, material, focus, speed and other settings. Test an appropriate sample and confirm suitability before production work.
